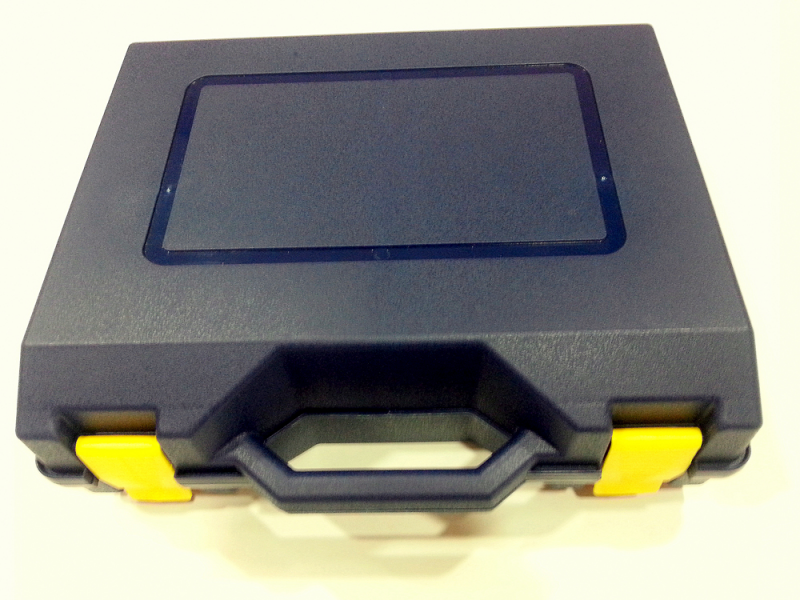

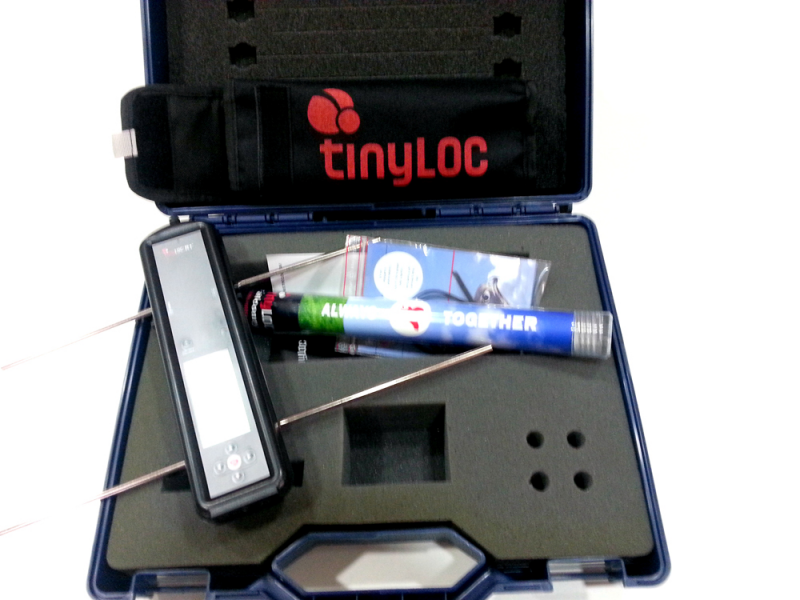

FALCONRY CASE PACK (CASE + F22 + MOUNTING + R1+)

629'00 € 786'50 €
(Ref. PACKFAEN0)

R1+ 433 MHz setup in English. Include 1 transmitter and 2 mountings: tail and leg. 15% OFF!!!

Product not available



R1+ Receiver F22 Transmitter Accessories

Digital receiver with high performance, easy to handle, intuitive. The radio tracking receiver turns the electromagnetic sign from the transmitter into an acoustic and digital signal, to be used to identify the direction of the signal where the animal carrying the transmitter is located. Every emitted signal by the transmitter is received acoustically to the speaker and visually through the smitter bar.

It makes the research of our animals something accurate and fast. The R1 + offers:

Easy to use in any field. Easy to handle with only one hand.
· Internal powerful antenna which provides high sensitivity and accuracy.
· Memorize up to 100 animals/transmitters (100 memories, with over 2,700 channels).
· It works with standard AA alkaline cells, or rechargeable cells approved by Tinyloc, so if you run out of battery in the field you can change them immediately.
· Automatic backlight display (with outdoor sensor light).
· DDC: It has an effective system for detecting the right direction (DDC), through numeric values which help to find the precise direction, avoiding problems related to maximum field rebounds.
· Automatic calibration: the receiver can automatically calibrates the transmitters, detecting any small variation in its frequency, increasing its performance.
· A symbol in the display shows when the battery level is low.
· Allows transmitters from other manufacturers in the frequency of 432, 433 and 434 MHz.
· 5 cm accuracy when locating a transmitter.

FREQUENCY RANGE

432.000-434.790 MHz

CHANNELS AND MEMORIES

2.790 channels  / 100 memories

AUTONOMY

25-50 HOURS. Indefinite when connected to car lighter.

POWER SUPPLY

6 V. / 4 Batteries 1,5 V LR6 (AA)

SENSITIVITY

-145 dBm

PROTECTION RATING

IP20 (keep from water and snow with a case or plastic bag)

WEIGHT WITH BATTERIES

534 gr.

DIMENSIONS (with folded antennas)

245x66,5x40 mm

OPERATING TEMPERATURE

-15 ºC to 50 ºC

STORAGE TEMPERATURE

-20 ºC  to70 ºC

CONNECTOR

Earphones audio Jack 3,5 mm., SMA external antenna

ACCURACY

5 cm., maximum accuracy

COMPATIBLE TRANSMITTERS

Tinyloc MINIHOND (hunting dogs)
Tinyloc F22 (falconry)

Tinyloc HOUND FINDER RT+GPS (only radiotracking mode)
Tinyloc HOND GPS (out of range collar, only radiotracking mode)
Tinyloc HOND BASIC (out of range collar)
Radiotracking transmitters of any other manufacturer working on frequencies 432, 433 y 434 MHz.

Radio location transmitter compatible with the R1 + receptor. Where power and lightness come together. Ideal for birds over 450 grams. Battery operated type 1/3N, which provides a range of 7 days. The low battery detector will warn us 2 days before the battery is fully depleted, making a double tone.

• Its weight is 8.2 gr. mounted to leg, and 8.7 gr. mounted tail (battery included).
• The transmitter has a LED light that let you know when it is operating. This system can be very useful in night searches.
• 433 MHz version is the most powerful legal transmitter that currently exists in the market. Its tubular shape and threaded cap system battery allows to use it to paw or tail when its owner wishes. 216 MHz version is available for countries where this frequency is permitted.
• With magnetic switch.

BIRD SPECIES

Some of the raptors using this transmitter are:

• Goshawk
• Peregrine falcon
• Sacre
• Gyrfalcon
• Harris



F22 433 MHz

FREQUENCY RANGE

UE/AUS/NZ (433.050-434.790 MHz). Meets CE Mark  (not legal in the USA)

AUTONOMY

7 DAYS (2 LAST DAYS WITH LOW BATTERY LEVEL MODE)

RADIO TRACKING RANGE

5 to 25 km – tracking from ground.
25 to 40 km – tracking from 3-4 mts high
40 to 80 km – tracking from higher

POWER SUPPLY

3 v. / 1 BATTERY 1/3N

POWER EMISSION

10 Mw

PROTECTIÓN RATE

IP67 (waterproof)

WEIGHT WITHOUT  BATTERIES

7,9 gr. (without fixation)

DIMENSIONS

26 cm. length (plus 2 cm. transmitter body)

OPERATING TEMPERATURE

-15ºC to 50ºC

STORAGE TEMPERATURE

-20ºC to 70ºC

TURNING ON /BLINKER

Magnetic (magnet) and with battery / Power indicator lighted LED.

COMPATIBLE RECEIVER

TINYLOC R1+ 433 MHz
Any other manufacturer receiver working on frequencies 433 and 434 MHz.

The case includes by default 2 mountings: a tail and leg ones. Alternatively, you can request the harness kit.

TAIL MOUNTING KIT FOR FALCONRY

The shape of the cover may vary depending on availability (flat or conical). The color of the fixing piece may vary depending on availability (gold, black or blue).

The tail kit for falconry is made up of a battery cover adapted to the tail mount of the clip that fixes the transmitter and the tail feather mount.

Model F22 allow this mounting system to be used alternately with others by simply unscrewing the battery cover.

Features:
The tail fixing system provides greater transmitter protection as it is kept out of the animal’s reach. The antenna is not so accessible to the bird of prey and it is more difficult for it to bite it. Also, the antenna is higher than when mounted on the leg, which helps in the event of the animal going down onto the ground.
As it is mounted on the tail, it should be fixed to the bird’s cock feather. This means keeping the bird almost totally immobile to insert the fixing.
Once the process has been done for the first time it does not have to be repeated as the fixing remains on the feather and it just has to be inserted into the clip holding the transmitter body.

LEG MOUNTING KIT FOR FALCONRY

The falconry leg kit is made up of the battery cover adapted to the leg mount and the strap for attaching the transmitter to the animal’s leg. Models F22 allow this mounting system to be used alternated with others by just unscrewing the battery cover.

Features: The leg mount system means the animal is handled less when fixing on the transmitter.
Birds of prey are also used to wearing objects on their legs, such as fetters or bells, so they do not regard the transmitter as an unfamiliar object. As it is fixed to the leg, the antenna is easy to reach by the bird so it is not unusual for it to bite or bend it. This is not a problem as it is interchangeable and can be replaced if broken.

HARNESS KIT FOR FALCONRY

Not included in the briefcase. You might ask for it alternatively to leg and tail mountings.

The mounting system more modern and secure. The harness includes Teflon antiallergic providing greater convenience and safety to your bird.
