Products

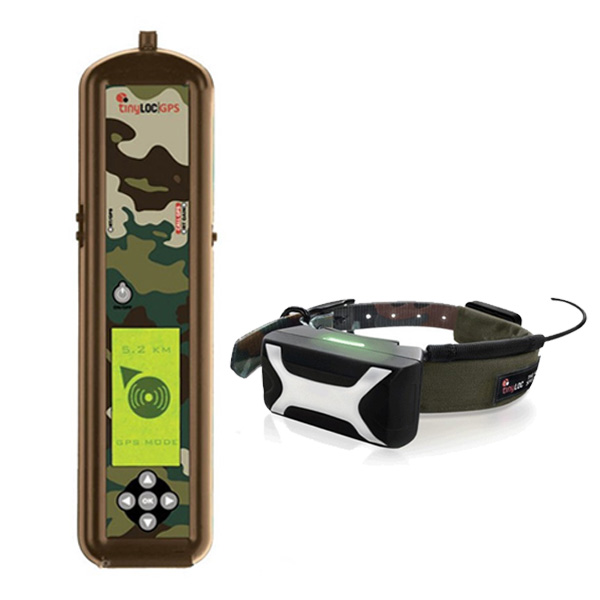

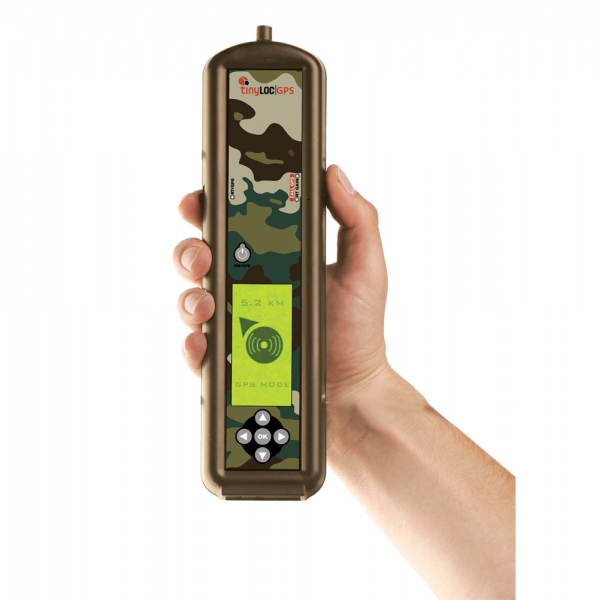

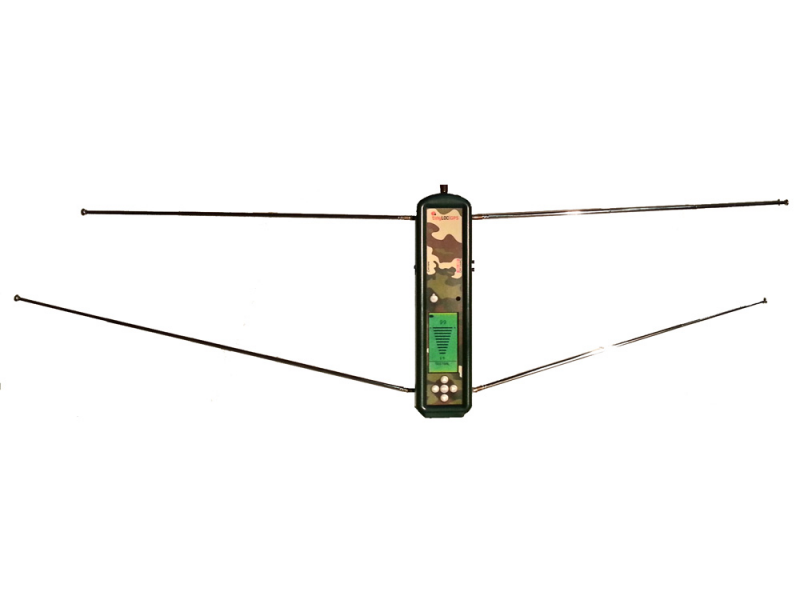

TINYLOC R2 Finder GPS+RT RECEIVER 150 MHz (USB)


499'00 € 546'00 € American version (MURS). NOT FOR SALE IN EU
(Ref. RX425GUS)

GPS + Radio Tracking receiver. NOT FOR SALE IN EU

Product without stock

Overview Specs Features

Get the experience of searching easily. Two kits in one: the receiver R2 Finder 150 Mhz combines the technology GPS with Radio Tracking (wide range or when GPS is not working) and includes the USB connection to communicate the receiver with any Android device (Smartphone and tablets). With the app TinyTAB (cable USB) you will see on the screen of your telephone or tablet Android the maps of the area you are hunting and specify the location of all your dogs with neither any additional cost nor any need of mobile coverage.


· Easy to use in any field. Easy to handle with only one hand.
· Internal powerfull antenna that provides the highest sensibility and accuracy.
· Locate up to 100 dogs (100 memories with thousands of channels).
· It works with standard AA alkaline batteries or rechargeable batteries recommended by Tinyloc, so if you are run out of batteries in the middle of the field, you can replace them immediately.
· Automatic display lighting (with outdoor sensor light).
· No fees, no phone coverage dependence.
· Get the location of the dog on a map (topographic, orthophotos etc...) through a tablet or Smartphone with our free app TinyTAB. Free downloadable maps from internet in your smartphone o Android tablet when connected by Wi-Fi. To connect the receiver with the devices a cable USB OTG is needed, Tinyloc recommends to use the one tested from us.



R2 FINDER 150 MHZ (Europe)

R2 FINDER 150 MHZ (US: MURS)

AUTONOMY

10-40 HOURS. Indefinite when connected to car lighet.

10-40 HOURS. Indefinite when connected to car lighet.

POWER SUPPLY

6 V. / 4 Batteries 1,5  V LR6 (AA)

6 V. / 4 Batteries 1,5  V LR6 (AA)

CHANNELS AND MEMORIES

3.790 channels / 100 memories

10 channels / 100 memories

SENSITIVITY

-146 dBm

-146 dBm

PROTECTION RATING

IP20 (keep from water and snow with a case or plastic bag)

IP20 (keep from water and snow with a case or plastic bag)

WEIGHT WITH BATTERIES

534 gr.

534 gr.

DIMENSIONS (with bent antenna)

245x66,5x40 mm

245x66,5x40 mm

OPERATING TEMPERATURE

-15 ºC to 50 ºC

-15 ºC to 50 ºC

STORAGE TEMPERATURE

-20 ºC to 70 ºC

-20 ºC to 70 ºC

SCAN MODE

YES

YES

CONNECTOR

mini-USB, Earphones audio 3,5 mm., SMA external antenna

mini-USB, Earphones audio 3,5 mm., SMA external antenna

MAPS LICENSE APP

Incl. TinyTAB

Incl. TinyTAB

COMPATIBLE TRANSMITTERS

HOUND FINDER GPS+RT 150 MHz (Europe)

HOUND FINDER GPS+RT 150 MHz (US:MURS)

TinyTAB
Software designed especially for hunters, compatible with Android devices:
· Before the hunting: Ideal for planning the day, get familiar with the area of hunting, access for cars, set the position of each hunter…
· During the hunting: You can view your position and the dogs one over the maps to make their recovery easy.
· After the hunting: Let’s review the path of each dog (uphill kilometers, downhill, speed of each section, time on movement and rest…)

Available for free on Google Play Shop Store.
TinyTAB for using with USB cable with special characteristics (use the one recommended by Tinyloc)

More info about TinyTAB >>>

GPS SCAN mode

The GPS SCAN mode (alternative to Radio tracking and GPS) of the receiver allows us to locate several transmitters sequentially, the equipment will be scanning the transmitters we have selected from the list and will keep their position in the receiver's memory and / or displayed on the mobile or tablet.

The system operates as follows: the receiver will hear the first transmitter we have selected from the list we want to scan, if it receives a valid position it will go to find the next transmitter and so on until the end of the list and then it will start again from the first one. If you do not receive any issuer during 30 seconds, the receiver will search the next transmitter on the list, and so on.

This mode is useful if you want to search several dogs at once both just with the receiver or using a tablet or mobile, where you can see their location and analyze its route. If the list is very long and you have recovered some of the dogs, we suggest removing them from the list to make the SCAN mode goes faster.
