DRONE UAV TRACKER FD1

TINYLOC UAV TRANSMITTER F22 433-434 MHz
TINYLOC UAV TRANSMITTER F22 433-434 MHz
Tinyloc radio tracking saves Sensefly ebee after eagle attack
185'00 € 215'00 €
(Ref. TX051XMI)

Quantity

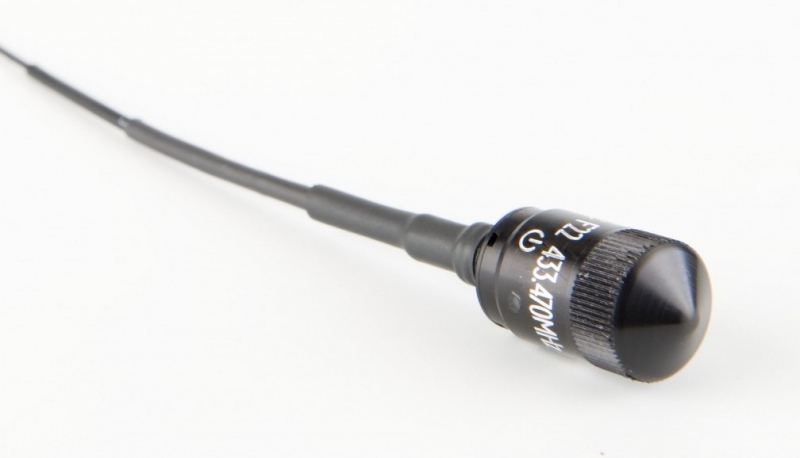

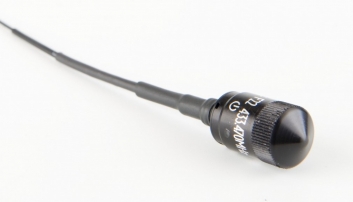

Tiny 8,3 g crash resistant drone tracker with 20 days battery lifetime.
In order to avoid your drone to be stolen, you can fit and hide the traker inside the drone.
Low frequency that doesn't affect drone communications.





Features Specs In the box & accessories

This tracker sends distress signals that are received by the R1+ receiver.

Main features:

• No monthly fee.
• Don't rely on GPS or any mobile network. Works everywhere, also indoor.
• Rugged aircraft aluminium enclosure, crash resistant tested.
• Independent battery included that allow in case of hard crash to don't rely on the UAV battery and become disconnected.
• Low battery detector will warm us 2 days before the battery is fully depleted  making a double bip.
• 13 days continuous battery lifetime. If you stop it with the magnetic switch after each flight, the lifetime is significantly extended.
• The transmitter has a LED light that let you know when it is operating. This system can be very useful in night searches.
• Most powerful legal transmitter that currently exists in the market.
• Low frequency that don't affect drone communications.
• Included magnetic switch allowing to turn on/off the beacon without opening the battery cover.





FD1 433 MHz

FREQUENCY RANGE

ISM standard band (433.050-434.790 MHz). Regulatory compliance

LIFE TIME

20 DAYS (2 LAST DAYS WITH LOW BATTERY LEVEL MODE)

TRACKING RANGE

5 to 25 km – tracking from ground.
25 to 40 km – tracking from 3-4 mts high
40 to 80 km – tracking from higher

POWER SUPPLY

3 V. / 1 litium BATTERY 1/3N

POWER EMISSION

10 mW

PROTECTIÓN RATE

IP67 (waterproof)

WEIGHT BATTERY INCLUDED

8,3 g.

BODY DIMENSIONS

23mm long /13.5mm diameter

ANTENNA LENGTH

26 cm Could be shortened assuming range decrease

OPERATING TEMPERATURE

-15ºC to 50ºC

STORAGE TEMPERATURE

-20ºC to 70ºC

MAGNETIC SWITCH Magnet included to switch on/off

In the box:

• FD1 tracker with its antenna.
• Conical aerodynamic battery cover (Ref. CA060340).
• Standard magnet for low distance swich on, 1mm. (Ref. IM000038)


 Tracker accessories:

• Powerfull magnet. For switching on when the tracker is hidden inside the drone. (Ref. IM09031A)
• Cover with ring, if you want to attach the tracker with a clamp. (Ref. CA06033O)
• Add another 1/3 N high capacity Varta battery 170mAH, 10 mAH more than competitors (Ref. IM09031A).
• Add another wire antenna, if you want to cut one and shorten the length (the shorten the length, the shorter the reach) (Ref. AN000019)
