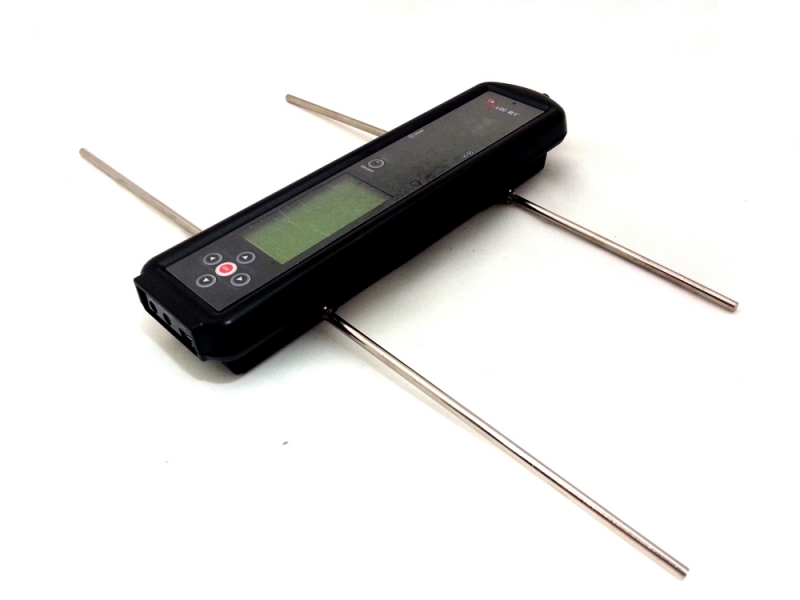

TINYLOC RECEIVER R1+ UAV TELEMETRY RT 433-434 MHz

TINYLOC RECEIVER R1+ UAV TELEMETRY RT 433-434 MHz
Tinyloc radio tracking saves Sensefly ebee after eagle attack

455'00 € English/French/Italian/Spanish
(Ref. RX410UEN)

Powerful radio tracking receiver on the European legal band and approved to CE marking. With 2,790 and 100 memory channels, supports transmitters of any manufacturer in the frequencies 432, 433 and 434 MHz. It is the radio tracking receiver with more features and the cheapest in the market.

Quantity


Overview Specs

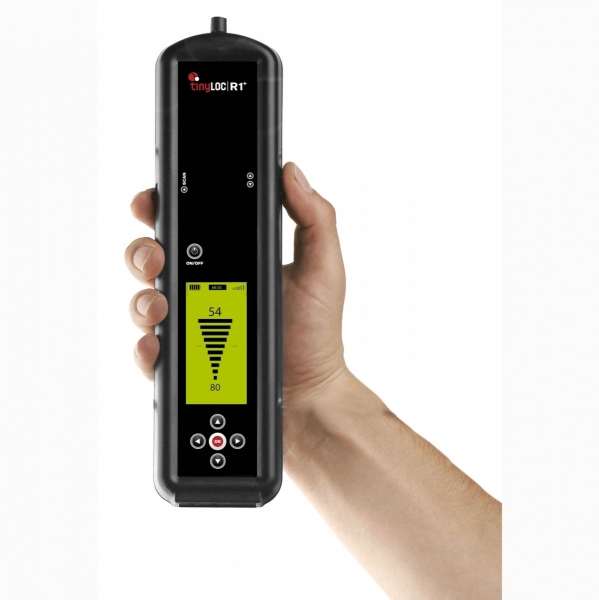

Digital receiver with high performance, easy to deal with, intuitive. The Radio tracking receiver turns the electromagnetic sign from the transmitter into an acoustic and digital signal, to be  used to identify the direction of the signal where the object carrying the transmitter is located.  Every sign emitted by the transmitter is received acoustically to the speaker and visually through the smitter bar.

It makes the research of our objects, animals or people something accurate and fast. The R1 + offers:

· EASY TO USE in any field. Easy to handle with only one hand.
· Internal POWERFUL ANTENNA that provides the highest sensibility and accuracy.
· MEMORIZE UP TO 100 TRANSMITTERS (100 memories, with over 2,700 channels).
· It works with standard AA ALKALINE BATTERIES, or rechargeable batteries approved by Tinyloc, so if you run out of battery in the field you can change them immediately.
· Automatic display LIGHTING (with outdoor sensor light).
· DDC: It has an effective system for detecting the right direction (DDC), through numeric values which help to find the precise address, avoiding problems related to maximum field rebounds.
· AUTOMATIC CALIBRATION: The receiver calibrates automatically the transmitters, detecting any small variation in its frequency, increasing its performance.
· A sign in the display shows when the BATTERY LEVEL is low.
· Allows transmitters from other manufacturers in the frequency of 432, 433 and 434 MHz.
· 5 cm accuracy when locating a transmitter.

FREQUENCY RANGE

432.000-434.790 MHz

CHANNELS AND MEMORIES

2.790 channels  / 100 memories

AUTONOMY

25-50 HOURS. Indefinite when connected to car lighter.

POWER SUPPLY

6 V. / 4 Batteries 1,5 V LR6 (AA)

SENSITIVITY

-145 dBm

PROTECTION RATING

IP20 (keep from water and snow with a case or plastic bag)

WEIGHT WITH BATTERIES

534 gr.

DIMENSIONS (with bent antenna)

245x66,5x40 mm

WORKING TEMPERATURE

-15 ºC to 50 ºC

KEEPING TEMPERATURE

-20 ºC  to70 ºC

CONNECTOR

Mini-USB, earphones audio 3,5 mm., SMA external antenna

ACCURACY

5 cm., maximum accuracy

COMPATIBLE TRANSMITTERS Tinyloc F22 and any 432, 433 and 434 MHz transmitter of any manufacturer.
