TINYLOC R2 RBT GPS+RT RECEIVER 433 MHz (bluetooth)

499'00 € 546'00 €
(Ref. RX421XEN)

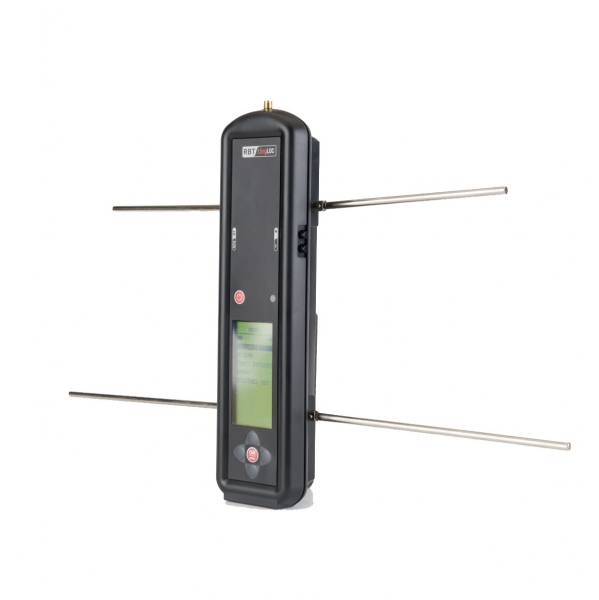

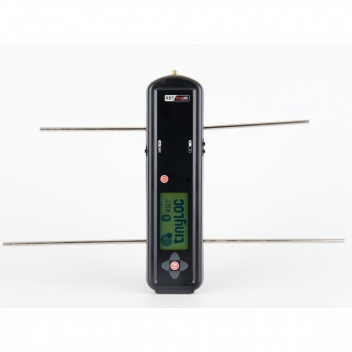

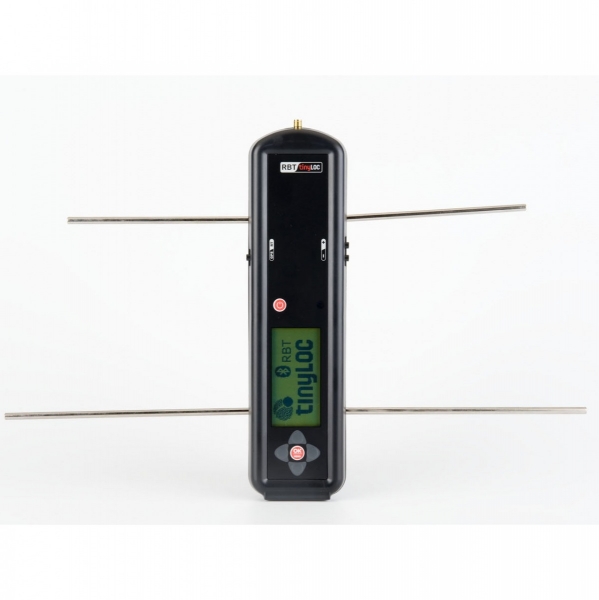

GPS + Radio Tracking receiver

Product without stock

Overview Specs Features

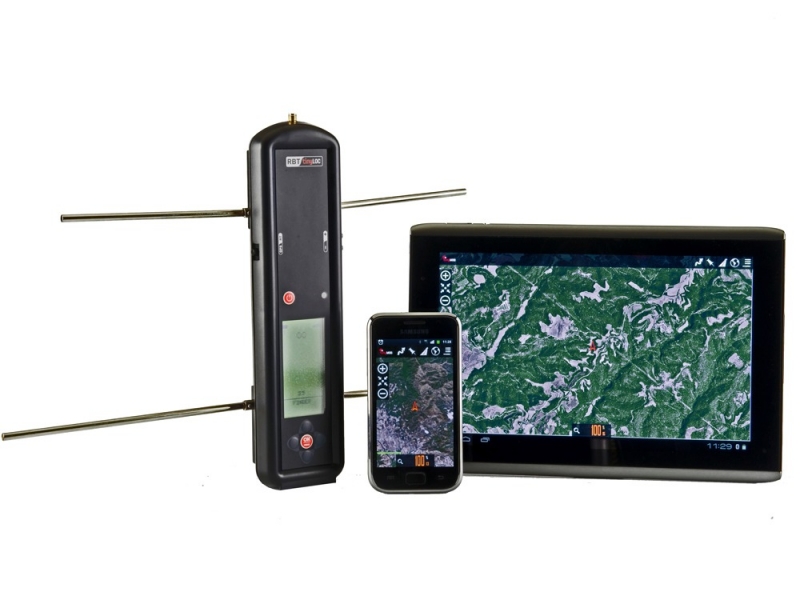

Get the experience of searching easily. Two kits in one: the receiver R2 RBT 433 MHz combines the technology GPS with Radiotracking (wide range or when GPS is not working) and includes the Bluetooth connection or micro USB to communicate the receiver with any Android device (Smartphone and tablets). With the new software TinyMOB (Bluetooth) or TinyTAB (cable USB) you will see in the screen of your Smartphone or tablet Android, the maps of the area you are hunting and specify the location of all your dogs with neither any additional cost nor any need of mobile coverage.

- Easy to use in any field. Easy to handle with only one hand.
- Internal powerful antenna that provides the highest sensibility and accuracy.
-Memorize up to 100 dogs (100 memories with over 2,700 channels).
- It works with standard AA alkaline batteries or rechargeable batteries approved by Tinyloc, so if you are run out of batteries in the middle of the field you can replace them immediately.
- Automatic display lighting (with outdoor sensor light)
- No fees, no phone coverage dependence.
- Get the location of the dog on a map (topographic, orthophotos, etc.) though a tablet of a Smartphone with our free app TinyMOB/TinyTAB. Free downloadable maps from internet on your Android Smartphone our tablet when working with Wi-Fi.



 R2 RBT 433 MHZ

AUTONOMY

10-40 HOURS. Indefinite when connected to car lighter

POWER SUPPLY

6 V. / 4 Batteries 1,5  V LR6 (AA)

CHANNELS AND MEMORIES

2.790 channels/ 100 memories

SENSITIVITY

-146 dBm

PROTECTION RATING

IP20 (keep from water and snow with a case or plastic bag)

WEIGHT WITH BATTERIES

534 gr.

DIMENSIONS(with bent antenna)

245x66,5x40 mm

OPERATING TEMPERATURE

-15 ºC to 50 ºC

STORAGE TEMPERATURE

-20 ºC to 70 ºC

SCAN MODE

NO

CONNECTOR

Bluetooth, micro-USB, Jack audio 3,5 mm., SMA external antenna

LICENSE APP MAPS

Incl. TinyMOB

COMPATIBLE TRANSMITTERS

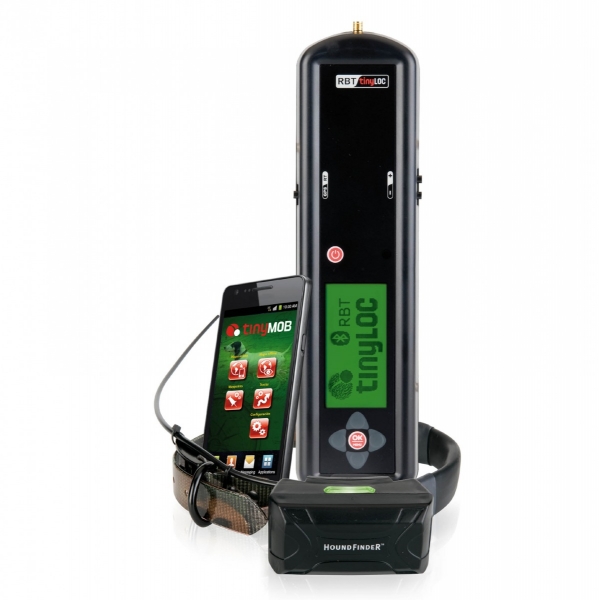

Hound Finder 433 MHz
MiniHond (only Radio Tracking)
Any other only radio tracking transmitter working on the frequency 432, 433 or 434 MHz (only Radio Tracking)

TinyMOB/ TinyTAB


Software designed especially for hunters, compatible with any Android device:
· Before the hunting: Ideal for planning the day, get familiar with the area, with access for cars, set the position of each hunter…

· During the hunting: You can view your position and the dogs one over the maps to streamline your recovery.

· After the hunting: Let’s review the path of each dog (uphill kilometers, downhill, speed of each section, time on movement and rest..)


Available for free on Google Play Shop Store.
TinyMOB for using with Bluetooth

More info about TinyMOB and TinyTAB >>>
