TINYLOC RECEIVER R1+ TELEMETRY RT 433 MHz


449'00 € English
(Ref. RX410XEN)

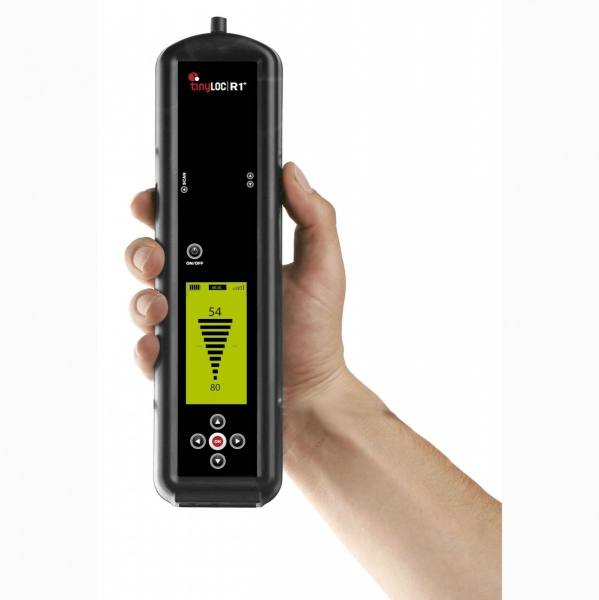

Radio Tracking receiver

Product without stock

Overview Specs

Digital receiver with high performance, easy to handle, intuitive. The radio tracking receiver turns the electromagnetic sign from the transmitter into an acoustic and digital signal, to be used to identify the direction of the signal where the animal carrying the transmitter is located. Every emitted signal by the transmitter is received acoustically to the speaker and visually through the smitter bar.

It makes the research of our animals something accurate and fast. The R1 + offers:

Easy to use in any field. Easy to handle with only one hand.
· Internal powerful antenna which provides high sensitivity and accuracy.
· Memorize up to 100 animals/transmitters (100 memories, with over 2,700 channels).
· It works with standard AA alkaline cells, or rechargeable cells approved by Tinyloc, so if you run out of battery in the field you can change them immediately.
· Automatic backlight display (with outdoor sensor light).
· DDC: It has an effective system for detecting the right direction (DDC), through numeric values which help to find the precise direction, avoiding problems related to maximum field rebounds.
· Automatic calibration: the receiver can automatically calibrates the transmitters, detecting any small variation in its frequency, increasing its performance.
· A symbol in the display shows when the battery level is low.
· Allows transmitters from other manufacturers in the frequency of 432, 433 and 434 MHz.
· 5 cm accuracy when locating a transmitter.

FREQUENCY RANGE

432.000-434.790 MHz

CHANNELS AND MEMORIES

2.790 channels  / 100 memories

AUTONOMY

25-50 HOURS. Indefinite when connected to car lighter.

POWER SUPPLY

6 V. / 4 Batteries 1,5 V LR6 (AA)

SENSITIVITY

-145 dBm

PROTECTION RATING

IP20 (keep from water and snow with a case or plastic bag)

WEIGHT WITH BATTERIES

534 gr.

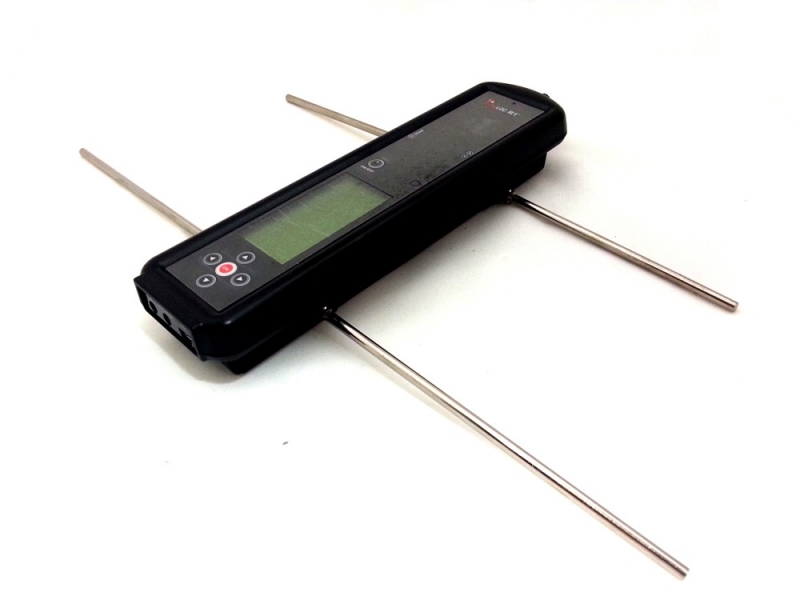

DIMENSIONS (with folded antennas)

245x66,5x40 mm

OPERATING TEMPERATURE

-15 ºC to 50 ºC

STORAGE TEMPERATURE

-20 ºC  to70 ºC

CONNECTOR

Earphones audio Jack 3,5 mm., SMA external antenna

ACCURACY

5 cm., maximum accuracy

COMPATIBLE TRANSMITTERS

Tinyloc MINIHOND (hunting dogs)
Tinyloc F22 (falconry)

Tinyloc HOUND FINDER RT+GPS (only radiotracking mode)
Tinyloc HOND GPS (out of range collar, only radiotracking mode)
Tinyloc HOND BASIC (out of range collar)
Radiotracking transmitters of any other manufacturer working on frequencies 432, 433 y 434 MHz.
