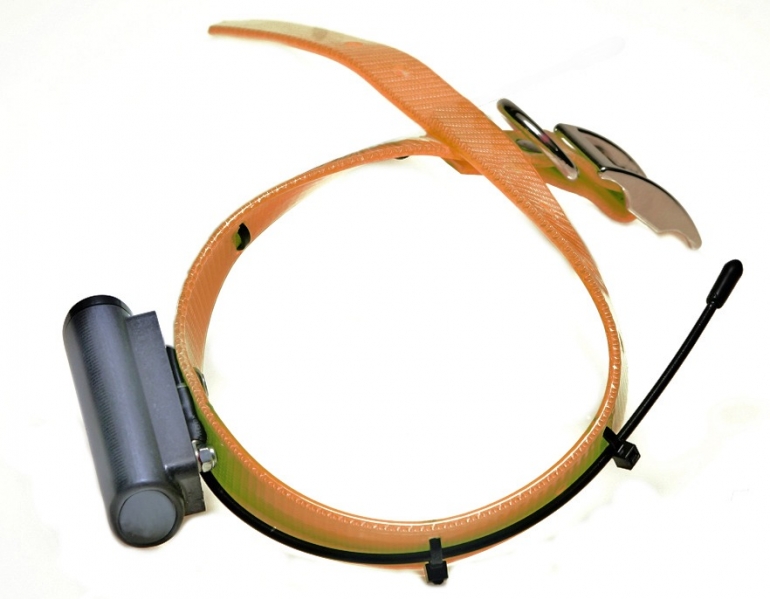

TINYLOC MINIHOND TRANSMITTER COLLAR 433 MHz

129'00 € 3/4'' x 20'' (aprox. 1'8 x 50 cm),Orange
(Ref. TX100NFR)

Radio Tracking Collar. For its location it requires a radio tracking receiver in the same frequency band (Tinyloc R1 + 433-434 MHz).

Product without stock

Overview Specs

Radio tracking collar compatible with receivers R1+ and R2 RBT 433 MHz. Small dogs cannot carry a heavy and bulky necklace. MiniHond collar is the most popular one among hunters because its perfect balance of size and scope, enabling big and small dogs to carry it comfortably. It is also cheaper than the GPS collar and hunters can combine one collar (GPS) or the other (MiniHond) according the behavior and needs of dogs.

Range, autonomy and low weight are the key words which define MiniHond: designed for rough lands, you can locate your dog up to 25 Km in tracking from the ground (and bad weather conditions). The MiniHond meets exactly the reason of its creation: search and locate. It is prepared to work in the worst environmental conditions: rain, snow, mud, heat, humidity, etc. It is completely waterproof.

FREQUENCY RANGE	UE/AUS/NZ (433.050-434.790 MHz). Approved to CE marking
AUTONOMY	30 days at normal operating. With low battery level: 120 h (5 additional days).
RADIO TRACKING RANGE	5 to 25 km - Traces from the ground. 25 to 40 km - Traces 3-4 m height. 40 to 80 km - traces from height
POWER SUPPLY	3 V. / 2 ALKALINE 1,5 V (AAA)
PROTECTION RATE	IP67 (waterproof up to 1 m.)
WEIGHT	60 gr.
DIMENSIONS	Transmitter: 25x54x26 mm. Antennes: 20 & 18 cm. Strap lenght: 20'' (50 cm.) & 23'' (56 cm.)
OPERATING TEMPERATURE	-30ºC to 50ºC
STORAGE TEMPERATURE	-40ºC to -70ºC
TURNING ON /BLINKER	Magnetic (magnet) and with battery / Power indicator lighted LED
COMPATIBLE RECEIVER	TINYLOC R1+ 433 MHz Radio tracking receivers of any manufacturer under freqüency 433 and 433 MHz.
